STRUCTURE

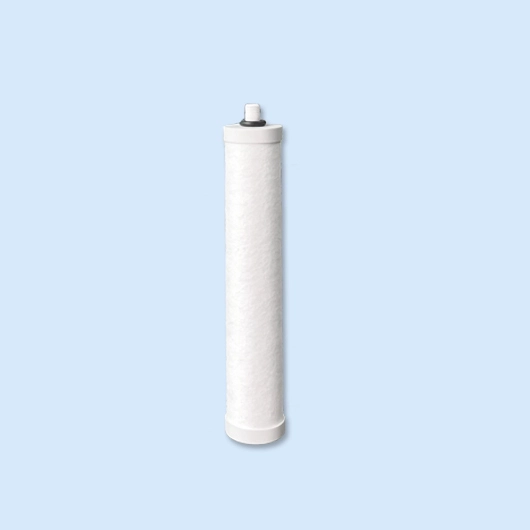

Water filter replacement melt blown sediment filter cartridge works as first stage of 3-stage water filter as sediment filter, it is a slim melt blown filter with threaded or double O-ring caps. The usual OD is 48mm and length 263mm or 295mm, also can be assembled as core of in-line filters, we're OEM supplier, other customized sizes and end cap options available.
FEATURES
• Smaller size
• Compatible with branded filters
• High sediment removal rate
• Food grade material
MAIN TECHICAL SPECIFICATION
• Connection: threaded or double O-ring nipple
• Maximum operating Pressure: 0.5MPa (72.5psi)
• Maximum temperature: 60℃(140℉)
• Maximum flow rate: 2L/M (0.53G/M)
• Measurements: 48X263mm, 48X295mm
TYPICAL APPLICATIONS
• SED Pre-filter replacement
• Water filter replacement
• Sand, silt, sediment filtration
ORDERING INFORMATION
SFPP 263/ 48
A B C
| SF |
Brand name (optional) |
| A |
Filter type- SFW= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| B |
Filter length- 263=263mm, 295=295mm |
| C |
Filter OD- 45mm, 48mm, 50mm, |
| D |
Additional information |
