STRUCTURE

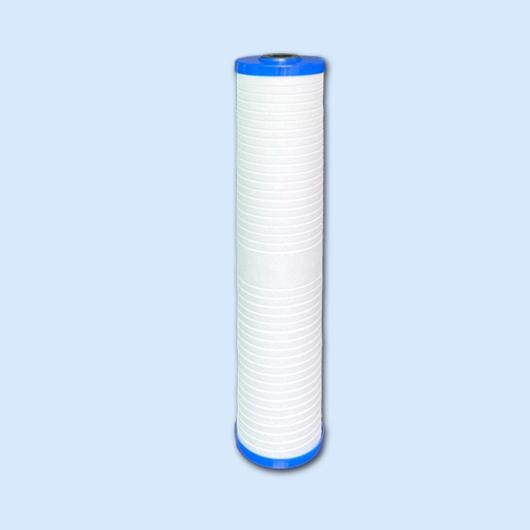

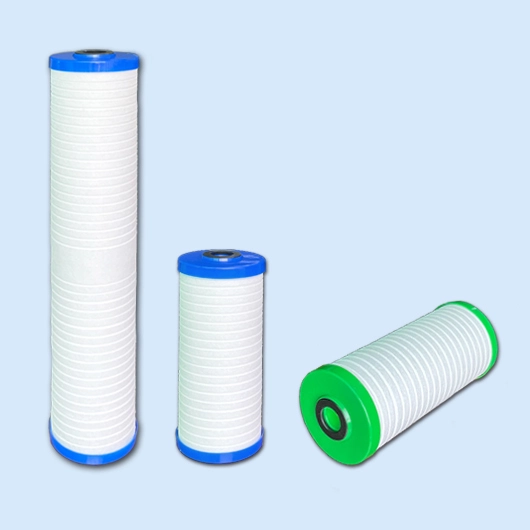

Grooved polypropylene sediment filter cartridges are large diameter melt blown filters with end caps and grooved surface. It's designed for whole house and commercial water filter as sediment filters. The grooved slots stabilize the removal efficiency and enhance service live of the filter and the end caps improve the seal. The usual sizes are 4.5"x10" and 4.5"x20", micron ratings are 5micron and 4.5"x20", 25microns, compatible with most conventional Cuno housings and whole house water filtration systems.
FEATURES
• Grooved surface
• DOE end caps
• Long service life
SPECIFICATION
• Length: 250㎜(10”) 508㎜(20”)
• Diameter: Outer diameter: 4.5" Inner diameter: 1"
• Micron Rate: 5, 25μm
• Operation pressure drop: 0.01 Mpa (1.45psi) Max pressure: 0.4 Mpa (58psi)
• Max pressure drop: 0.2Mpa(29psi) Max temperature: 60℃(140℉)
TYPICAL APPLICATIONS
• Sand, silt, dirt, rust particles removal
• Whole house water filters
• Commercial water filters
ORDERING INFORMATION
SF PP 20- 5 D 114 / 28 G C
1 2 3 4 5 6 7 8
| 1. |
Brand name （optional） |
| 2. |
Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| 3. |
Length- 10/20/30/40, inches. 250/500/750/1000, mm. |
| 4. |
Rating- 5/25 microns |
| 5. |
D= diameter, follow by diameters, outer diameter * inner diameter in mm |
| 6. |
Outer diameter: 60/63/110/152 mm |
| 7. |
Inner diameter: 28/30mm |
| 8. |
Additional info- C= end cap, G= grooved/slotted, P= pressed/linded, BB= big blue |
