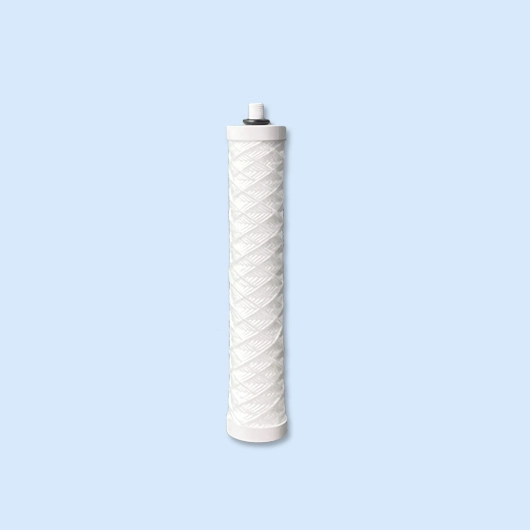

Water filter replacement string wound filter cartridge

String wound water filter replacement is compatible with smaller-sized filter systems, it's a type of sediment pre-filter with smaller size and nipple or threaded end caps.

Inquire Now

Specification

STRUCTURE

String wound water filter replacement is compatible with smaller sized filter systems, it's a type of sediment pre-filter with smaller size and nipple or threaded end caps. The usual OD is 48mm and length 263mm or 295mm, also can be assembled as core of in-line filters, we're manufacturer of filter cartridges, other customized sizes and end cap options available.
End caps: double O-ring nipple or male thread with washer

FEATURES

• Smaller size
• Compatible with branded filters
•  High sediment removal rate
•  Food grade material

MAIN TECHICAL SPECIFICATION

•  Connection: threaded or double O-ring nipple
• Maximum operating Pressure: 0.5MPa (72.5psi)
• Maximum temperature: 60℃(140℉)
• Maximum flow rate: 2L/M (0.53G/M)
• Measurements: 48X263mm, 48X295mm

TYPICAL APPLICATIONS

• SED Pre-filter replacement
• Water filter replacement
• Sand, silt, sediment filtration

ORDERING INFORMATION

SFW  263/ 48 L
A B C D

SF	Brand name (optional)
A	Filter type- SFW= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
B	Filter length- 263=263mm, 295=295mm
C	Filter OD- 45mm, 48mm, 50mm,
D	Additional information- L=L series material
