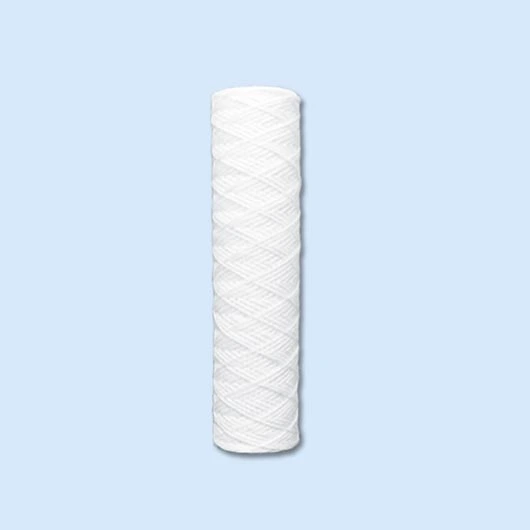

JP real depth filtration string wound filter cartridge
JP series PP string wound filter cartridge is wound by Japanese standard method, but using common yarn so its cost is lower but has higher micron rate accuracy. Not recommended for drinking water use but is recommended as sediment filter for general industrial and factories.
Inquire Now
Specification
STRUCTURE
String wound filter cartridge consists of multi-hole frames wound closely with textile fibers. Diverse kinds of filtering precision can be realized by controlling the winding density. As the outer bore diameter is larger than the inner one, the filter cartridges have a good deep-level filtering capability. JP series has straight multi-hole from surface to the inner core, which performance a maximum dirt holding capacity and lowest pressure drop. We have factory in China to produce different sizes and micron rates of string wound filters.
FEATURES
• Through holes create real depth filtration
• High flow and low pressure loss
• High dirt holding capacity and long service life
• Commom material makes a reasonable price
MAIN TECHICAL SPECIFICATION
• Dimension: Outer diameter Ø63±1mm Inner diameter Ø 28mm or Ø 30mm
• Maximum operating Pressure: 0.5MPa （72.5psi）
• Maximum operating Temperature: 60℃（140℉）
TYPICAL APPLICATIONS
• Industrial liquid filtration (PCB & Electro-plating)
• Synthetic resin & painting
• Acid and alkali liquid filtration
• Pre - RO
• Other applications
TABLE 1
FLOW OF FILTER CARTRIDGE
The recommended flow for the filter cartridges in service is shown in the table (L/h for a 250㎜filter cartridge)
Notes:
1. The flow of each 250mm（10inch）filter cartridge should not exceed 1200 L/H (317G/H), otherwise its precision may be affected.
2. The flows shown in the above table are only the recommended values. The actual flow of the filter cartridge in service may change due to the liquid nature, temperature, the nature of the eliminated particles, the contents of the particles, etc.
3. It is recommended that a new filter cartridge used in the first time should work under a pressure drop of 0.1 - 0.3 bar (1.45 – 4.35psi ), while the final pressure drop for the filter cartridge exchange is set at 2.5 bar. For the filter cartridge whose precision is lower than 10μm, the pressure drop for the filter cartridge exchange had better be set at 1.0 -1.5 bar (14.5 – 21.8psi).
TABLE 2
DIRT HOLDING CAPACITIES
TABLE 3
ORDERING INFORMATION
SF W 20- 5 P 63 P 28 JP
A B C D
String wound filter cartridge consists of multi-hole frames wound closely with textile fibers. Diverse kinds of filtering precision can be realized by controlling the winding density. As the outer bore diameter is larger than the inner one, the filter cartridges have a good deep-level filtering capability. JP series has straight multi-hole from surface to the inner core, which performance a maximum dirt holding capacity and lowest pressure drop. We have factory in China to produce different sizes and micron rates of string wound filters.
FEATURES
• Through holes create real depth filtration
• High flow and low pressure loss
• High dirt holding capacity and long service life
• Commom material makes a reasonable price
MAIN TECHICAL SPECIFICATION
• Dimension: Outer diameter Ø63±1mm Inner diameter Ø 28mm or Ø 30mm
• Maximum operating Pressure: 0.5MPa （72.5psi）
• Maximum operating Temperature: 60℃（140℉）
TYPICAL APPLICATIONS
• Industrial liquid filtration (PCB & Electro-plating)
• Synthetic resin & painting
• Acid and alkali liquid filtration
• Pre - RO
• Other applications
TABLE 1
FLOW OF FILTER CARTRIDGE
The recommended flow for the filter cartridges in service is shown in the table (L/h for a 250㎜filter cartridge)
| Micron Rate(μ m) | Viscosity | ||||
| 1cs(water) | 30cs | 60cs | 120cs | 250cs | |
| 0.5 | 70 | 60 | 40 | 25 | - |
| 1 | 150 | 90 | 60 | 40 | - |
| 3 | 300 | 120 | 80 | 50 | - |
| 5 | 500 | 170 | 120 | 60 | 45 |
| 10 | 800 | 300 | 140 | 70 | 60 |
| 20 | 1100 | 540 | 220 | 100 | 95 |
| 30 | 1200 | 670 | 300 | 150 | 130 |
| 50 | 1200 | 880 | 440 | 180 | 160 |
| 75 | 1200 | 1200 | 690 | 230 | 200 |
| 100 | 1200 | 1200 | 750 | 270 | 220 |
1. The flow of each 250mm（10inch）filter cartridge should not exceed 1200 L/H (317G/H), otherwise its precision may be affected.
2. The flows shown in the above table are only the recommended values. The actual flow of the filter cartridge in service may change due to the liquid nature, temperature, the nature of the eliminated particles, the contents of the particles, etc.
3. It is recommended that a new filter cartridge used in the first time should work under a pressure drop of 0.1 - 0.3 bar (1.45 – 4.35psi ), while the final pressure drop for the filter cartridge exchange is set at 2.5 bar. For the filter cartridge whose precision is lower than 10μm, the pressure drop for the filter cartridge exchange had better be set at 1.0 -1.5 bar (14.5 – 21.8psi).
TABLE 2
DIRT HOLDING CAPACITIES
TABLE 3
ORDERING INFORMATION
SF W 20- 5 P 63 P 28 JP
A B C D
| SF | Brand name |
| W | Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| A | Length- 10/20/30/40, inches. 250/500/750/1000, mm. |
| B | Rating- 0.5/1/3/5/10/25/50/75/100/150/200 microns |
| P | Yarn material- P= polypropylene, C= cotton, PE= polyester, GF= glass fiber |
| C | Outer diameter: 60/63/110/152 mm |
| P | Inner core material- P= polypropylene, S= stainless steel, SUS202 or SUS304 |
| D | Inner diameter- 28/30/70/100mm |
| JP | Series code- JP= JP series, HF= Hi Flow series |
