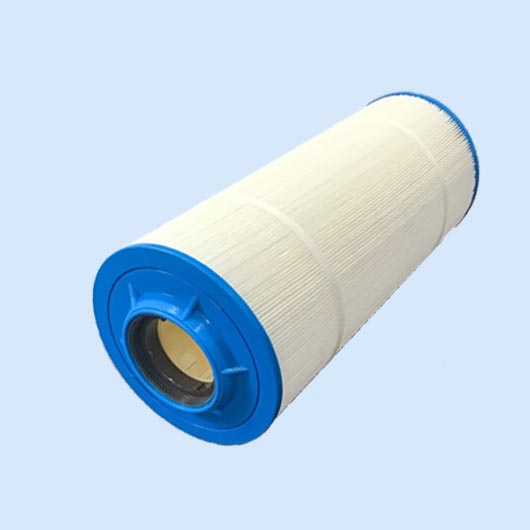

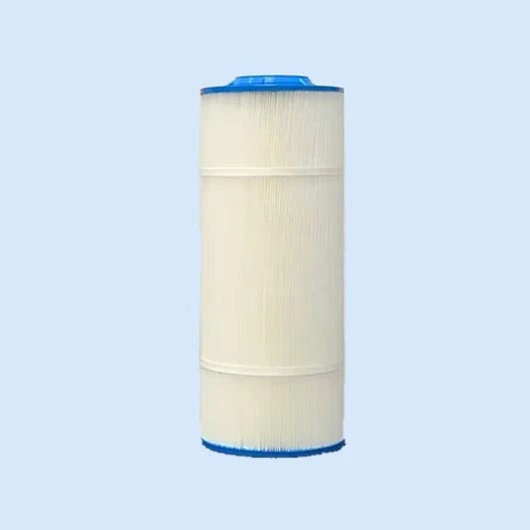

Pleated polyester filter cartridge

Pleated polyester filter cartridge is made of polyester media by pleating and joining the media to rubber gaskets, the inner core is made of ABS or PVC, with the end caps molded on both sides. The outer diameters is as wide as 197mm, with size options of 40, 90 and 170. Widely used for swimming pool and spa water filtration, pre-RO and other water filtration.
Inquire Now

Specification

Structure

Pleated polyester filter cartridge is made of polyester media by pleating and joining the media to rubber gaskets, the inner core is made of ABS or PVC, with the end caps molded on both sides. The outer diameters is as wide as 197mm, with size options of 40, 90 and 170. Widely used for swimming pool and spa water filtration, pre-RO and other water filtration.

Applications



■ Swimming pool and spa water filtration

■ Pre filtration of RO system

■ Cooling tower water filtration

■ Marine and aquarium water filtration

■ Industrial water filtration


Features


■ Ultra-large surface area

■ Robust structure

■ Low pressure drop

■ Long service life



Specifications


■ Dimensions: OD: 197mm(7.75")  Length: 10"(9-5/8"), 20"(19-1/2"), 30"(30-3/4")

■ Material of Constructions:Filter media: Polyester  End cap: PU Core: ABS/PVC

■ Performance:Removal Rating: Removal Rating: 1µm,5µm,10µm,20µm,50µm

  Maximum Operating Temperature: 60°C(140℉)

  Maximum Operating pressure: 4.0 Bar



Table 1 ORDERING INFORMATION

SF HC 205
            A   B

SF Brand name
HC Type: PEL=polyester, PL=polypropylene, CL=cellulose HC=HC series
A Length- 10/20/30/40, inches. 250/500/750/1000, mm.
B Rating- 0.5/1/3/5/10/25/50/75/100/150/200 microns
