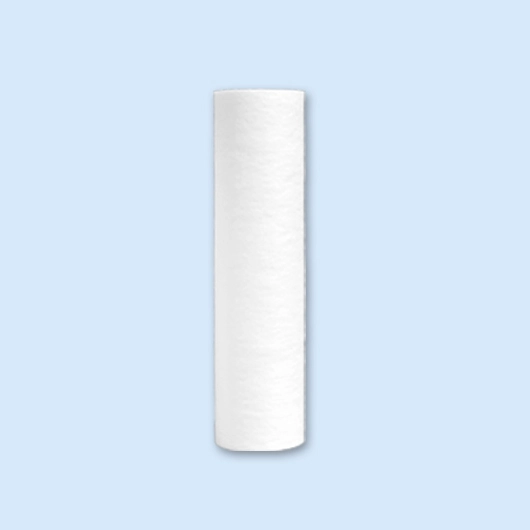

PP series melt blown filter cartridge (the cheapest melt blown)

PP series standard melt blown filter cartridges

PP series melt blown filter cartridge is conventional melt blown filter cartridges with various of size options for water treatment, water filter and industrial sediment filter purposes. Material is polypropylene.
Inquire Now

Specification

STRUCTURE

      PP Spun filter cartridge is a tube-shaped product, which is made of polypropylene through melting, spraying, drawing, receiving and processes. Standard PP filters are in a weight range of 90-150g per 10" . And their micron range is 1 - 50micron. Manufactured in China.

Sizes: 2.5"x10", 2.5"x20", 2.5"x30", 2.5"x40", 2.5"x50".
Micron rates: 1micron, 5micron, 10micron, 25micron, 50micron, 100micron.

FEATURES

•  Resonable price
•  Stable performance

SPECIFICATION

•  Length: 250㎜(10”)  500㎜(20”)  750㎜(30”)  1000㎜(40”)
•  Diameter: Outer diameter: Ø 63±2㎜    Inner diameter: Ø30㎜  Ø28㎜
•  Micron Rate: 1, 3, 5, 10, 20, 30, 50μm
•  Operation pressure drop:  0.01 Mpa (1.45psi)   Max pressure: 0.4 Mpa (58psi)
•  Max     pressure    drop:  0.2Mpa(29psi)       Max temperature: 60℃(140℉)

TYPICAL APPLICATIONS

•  PCB & metal finishing
•  Food & beverage
•  Pre- RO
•  Water treatment

TABLE 1

TECHNICAL INDEX


Item
型号
Normal precision
公称精度 μm
Initial precision
初始精度 μm
Max particles
最大颗粒 μm
Water flow
水流量L/min
PP-1 1 10-15 15 10
PP-3 3 15-25 25 14
PP-5 5 25-35 35 17
PP-10 10 30-40 40 20
PP-20 20 35-50 50 24
PP-30 30 40-60 60 28
PP-50 50 60-90 90 32
PP-75 75 90-110 110 34
PP-100 100 110-130 130 38













A: These flow values are for 10” filter cartridge under pressure difference of 0.015Mpa(2.17psi).
B: Filtering efficiency of the initial precision is 95%.
C: Filtering efficiency of the max particles is 99%.

TABLE 2

DIRT HOLDING COMPARISON


TABLE 3

ORDERING INFORMATION


SF  PP 205 D 63 * 28  W 220
1     2    3    4 5  6      7    8    9


1. Brand name (optional)
2. Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
3. Length- 10/20/30/40, inches. 250/500/750/1000, mm.
4. Rating- 0.5/1/3/5/10/25/50/75/100/150/200/250/300 microns
5. D= diameter,  follow by diameters, outer diameter * inner diameter in mm
6. Outer diameter: 60/63/110/152 mm
7. Inner diameter: 28/30mm
8. W= weight
9. Weight- in grams
10. Additional info- C= pp inner core,  G= grooved/slotted, P= pressed/linded, BB= big blue
