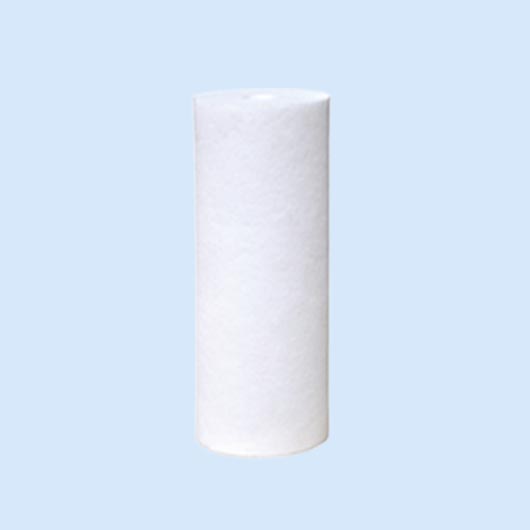

PP series big blue melt blown filter cartridges

Big blue melt blown filter cartridges refers to 4.5" outer diameter melt blown filters, usually work as sediment filter for POE water treatment systems. The bigger outer diameter allows multi-rates design layered from outside to inside of the cartridge.

Inquire Now

Specification

STRUCTURE

      PP Spun filter cartridge is a tube-shaped product, which is made of polypropylene through melting, spraying, drawing, receiving and processes. Standard PP filters big blue are in a weight range of 350-400g per 10" . And their micron range is 1 - 100micron. And big meshes PP filter's micron range is 75-100micron. Big blue melt blown filter is a series of 4.5" jumbo water filters, compatible with big blue filter housings. With its larger diameter and thicker layers, the capacity is longer. Use as commercial and whole house sediment filter.

Available sizes: 4.5"x10", 4.5"x20".
Micron rates: 1micron, 5micron, 10micron, 20micron, 50micron, 100micron.

FEATURES

• Resonable price
• Stable performance
• Long service time and low pressure drop (big mesh pp)

SPECIFICATION

• Length: 250㎜(10”)  500㎜(20”)  750㎜(30”)  1000㎜(40”)
• Diameter: Outer diameter: Ø 113/63±2㎜    Inner diameter: Ø30㎜  Ø28㎜
• Micron Rate: 1, 3, 5, 10, 20, 30, 50μm, 75, 100μm
• Operation pressure drop:  0.01 Mpa (1.45psi) Max pressure: 0.4 Mpa (58psi)
• Max     pressure    drop:  0.2Mpa(29psi) Max temperature: 60℃(140℉)

TYPICAL APPLICATIONS

• Rust, sand, sediments removal
• Food & beverage
• Pre- RO
• Water treatment

TABLE 1

TECHNICAL INDEX ：

Item 型号	Normal precision 公称精度 μm	Initial precision 初始精度 μm	Max particles 最大颗粒 μm	Water flow 水流量L/min
PP-1	1	10-15	15	10
PP-3	3	15-25	25	14
PP-5	5	25-35	35	17
PP-10	10	30-40	40	20
PP-20	20	35-50	50	24
PP-30	30	40-60	60	28
PP-50	50	60-90	90	32
PP-75	75	90-110	110	34
PP-100	100	110-130	130	38

A: These flow values are for 10” filter cartridge under pressure difference of 0.015Mpa(2.17psi).
B: Filtering efficiency of the initial precision is 95%.
C: Filtering efficiency of the max particles is 99%.

TABLE 2

ORDERING INFORMATION

SF PP 20- 5 D 113 * 28 W 760 BB
1 2 3 4 5 6 7 8 9 10

1.	Brand name
2.	Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
3.	Length- 10/20/30/40, inches. 250/500/750/1000, mm.
4.	Rating- 0.5/1/3/5/10/25/50/75/100/150/200/250/300 microns
5.	D= diameter, follow by diameters, outer diameter * inner diameter in mm
6.	Outer diameter: 60/63/110/152 mm
7.	Inner diameter: 28/30mm
8.	W= weight
9.	Weight- in grams
10.	Additional info- C= pp inner core, G= grooved/slotted, P= pressed/linded, BB= big blue
