STRUCTURE

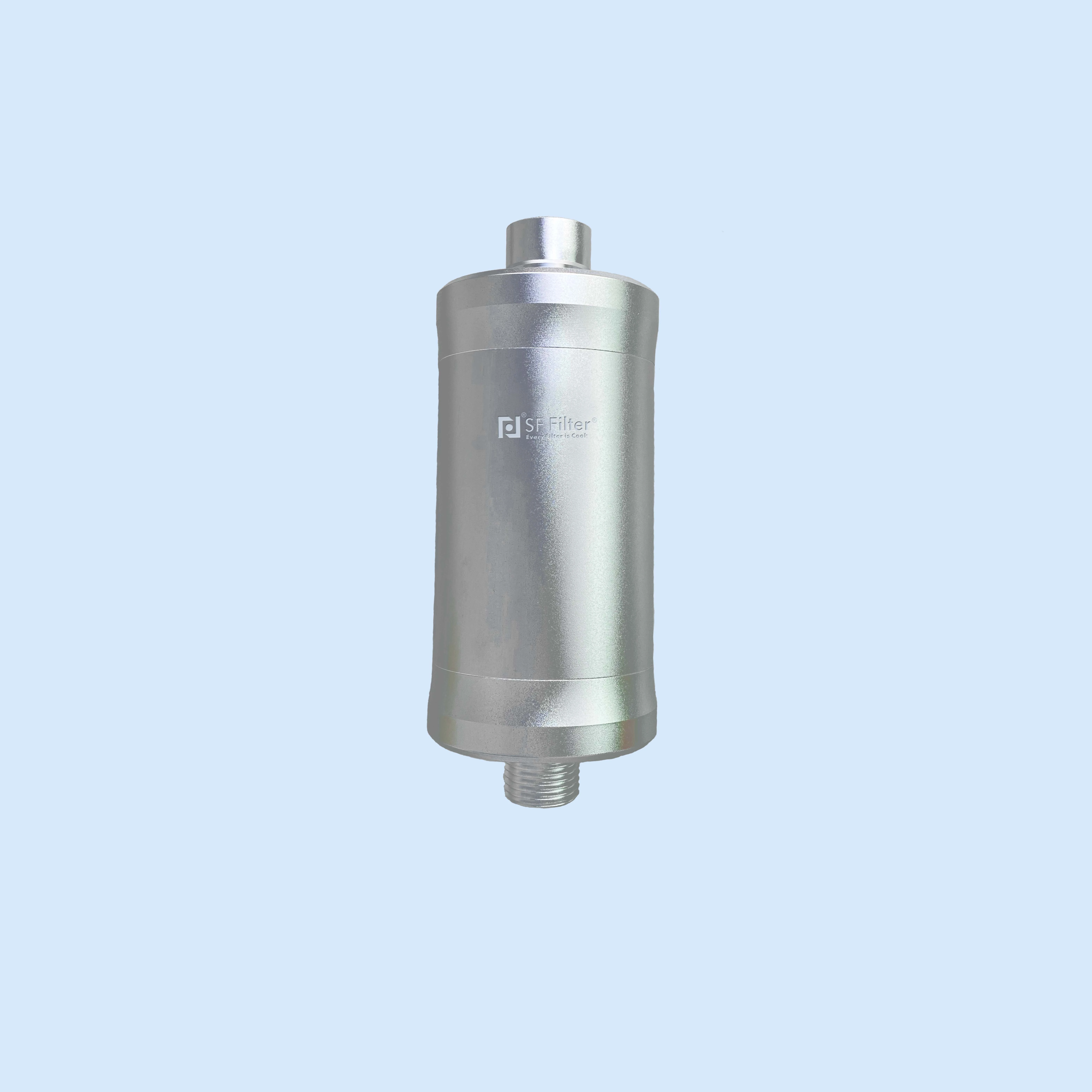

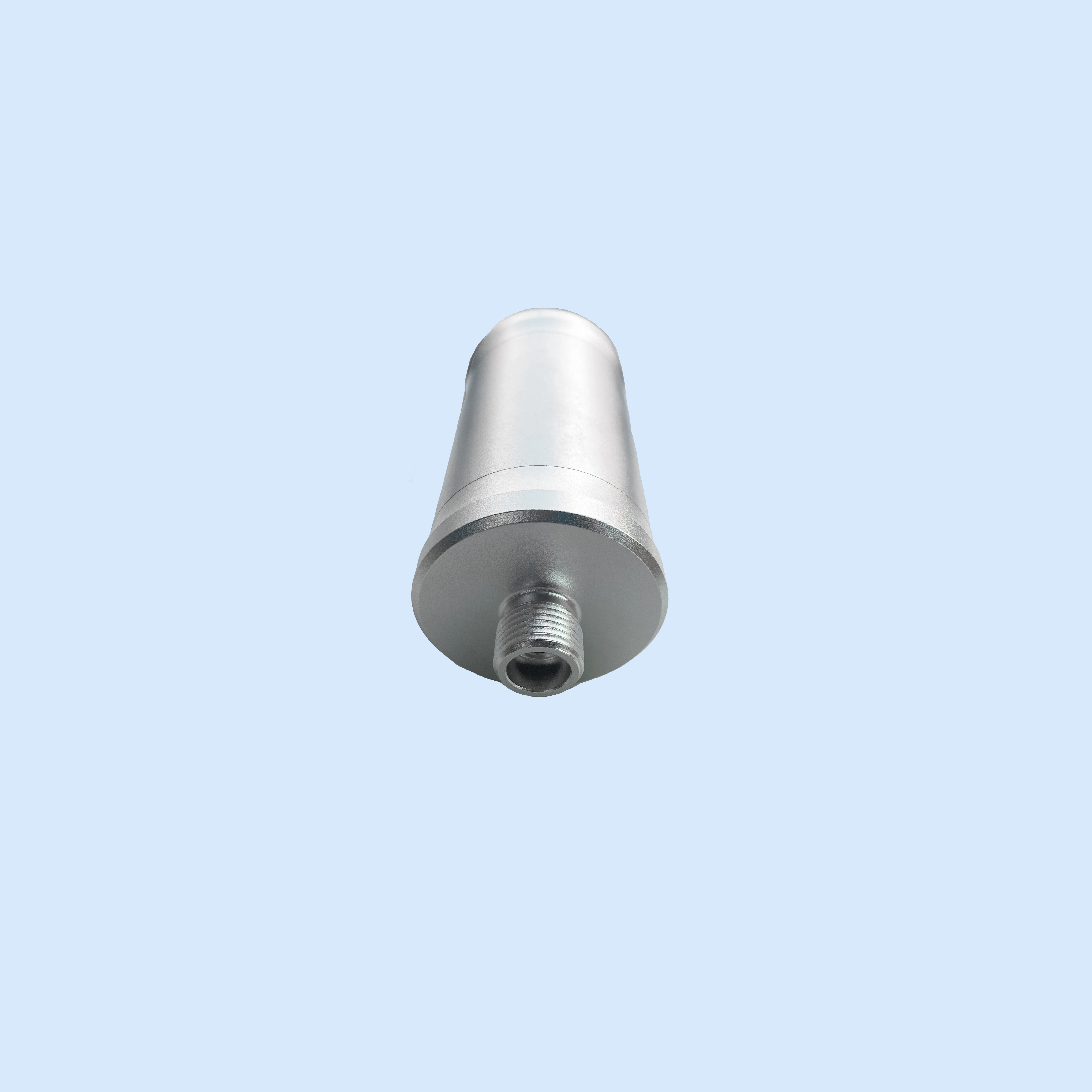

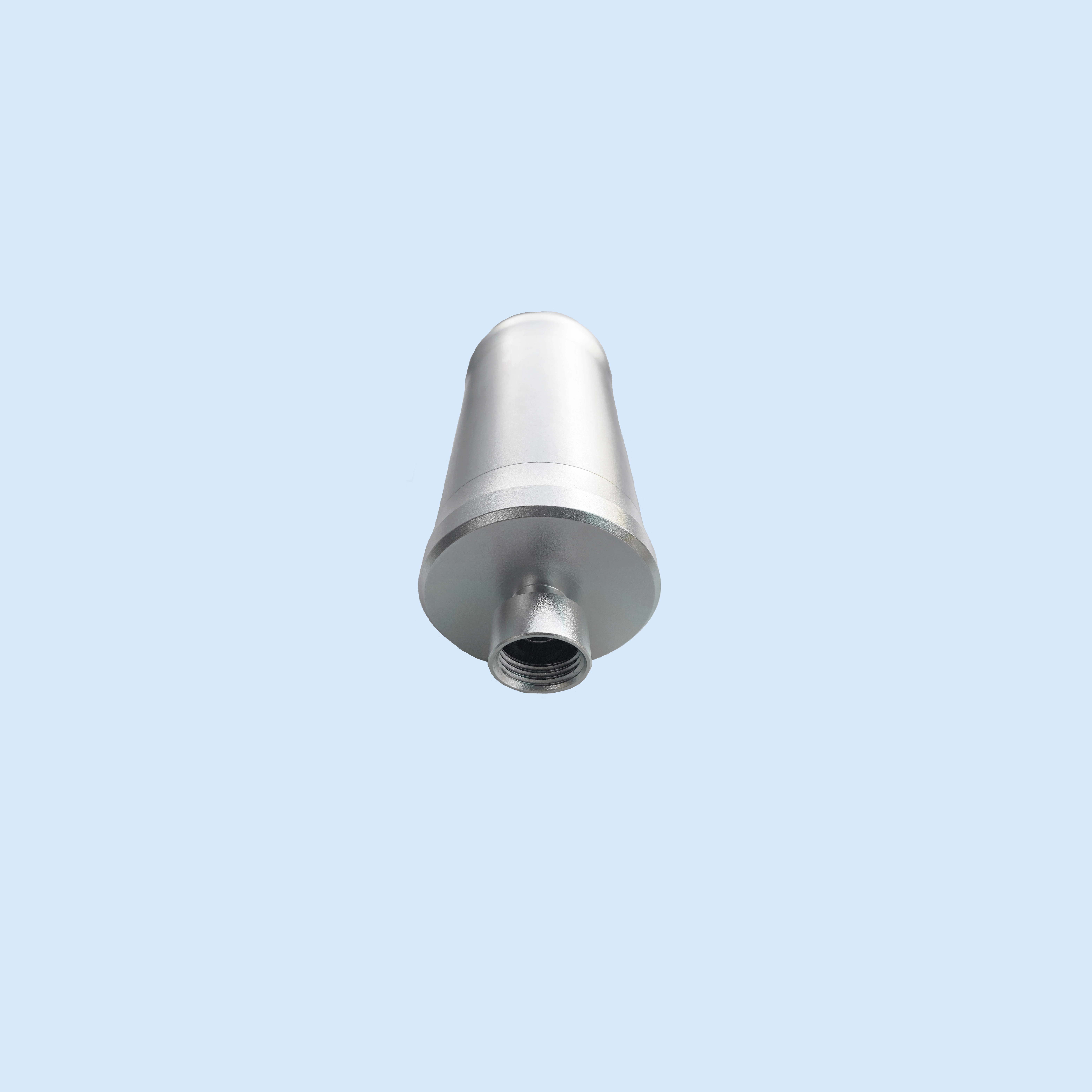

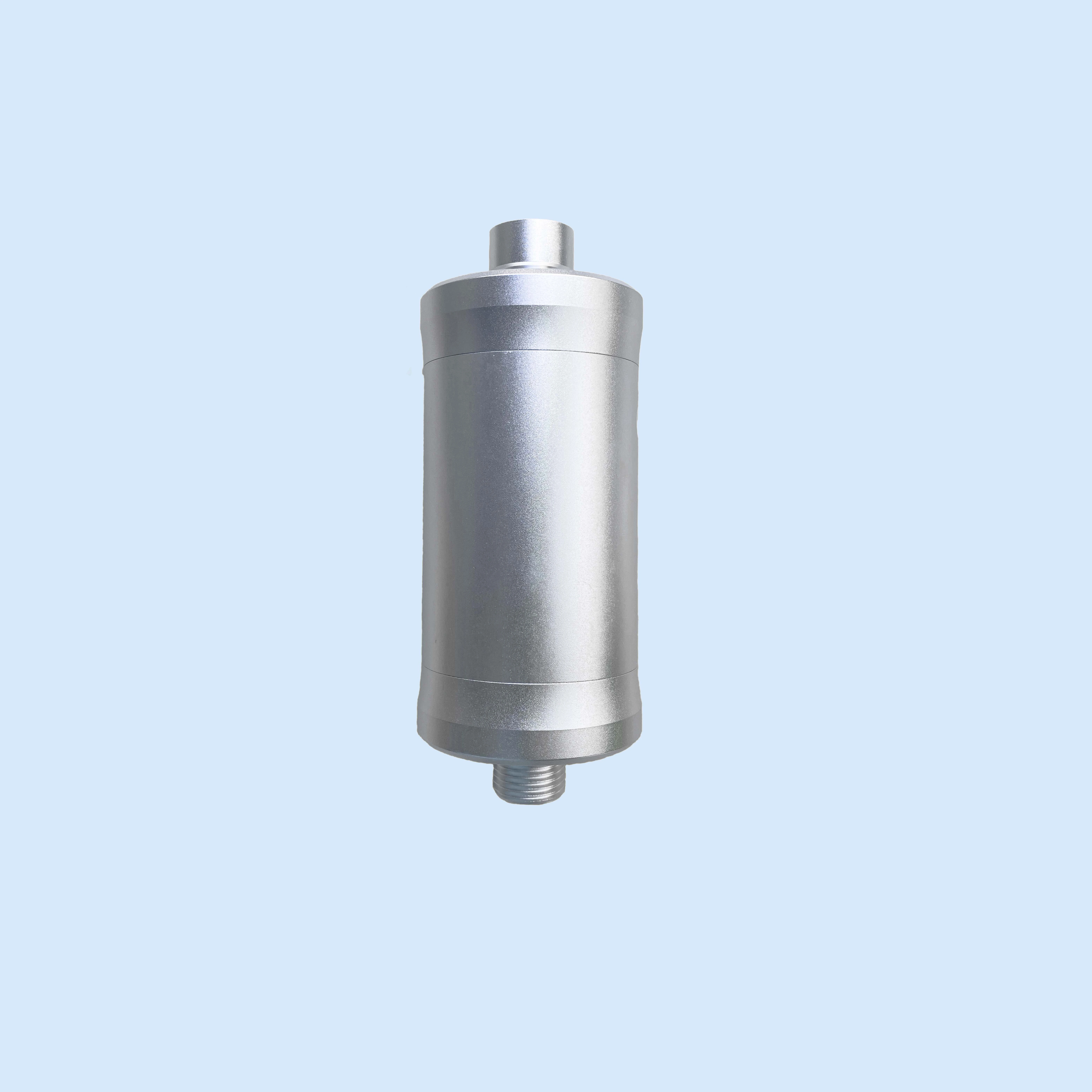

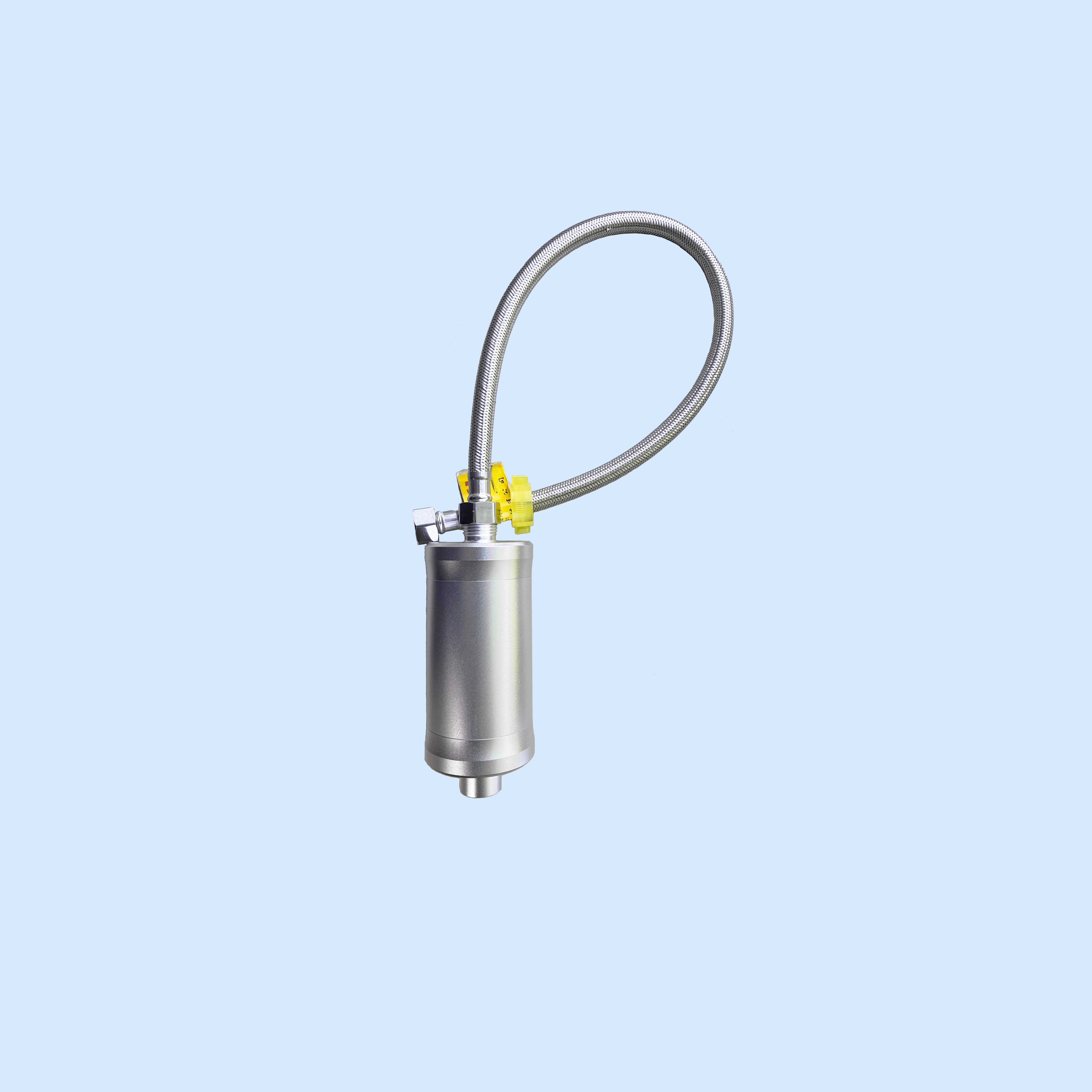

Water filter designed for boat, ship and RV, with UF membrane, granular activated carbon and mineral balls to eliminate bacteria, remove or reduce odor, taste and organic pollutants, and mineral balls to adjust pH and raise minerals for the distilled water. With 3/4" universal inlet and outlet ports, easy to be installed, replaced or removed, and metal housing well adapt to impacts in moving kitchens of vehicles, boats and ships..
FEATURES
• Universal connection
• Easy instal, replace and remove
• Impact resistance
• 99.99% bacterial removal, odor removal, pH adjustment
• Food grade
MAIN TECHICAL SPECIFICATION
• Connection: 1/4" threaded male and female NPT connection
• Maximum operating Pressure: 0.5MPa (72.5psi)
• Maximum temperature: 60℃(140℉)
• Maximum flow rate: 2L/M (0.53G/M)
• Bursting pressure: 2.0Mpa (290psi)
• Maximum service life: 1000G or 6 months
TYPICAL APPLICATIONS
• RV drinking water filtration
• Marine boat water filtration
• Ship distilled water filtration
• Odor, color, free chlorine, organic objects reduction and weak alkalinity
ORDERING INFORMATION
SF RM PR UF 3
A B C D
| SF |
Brand name (optional) |
| A |
Filter type- RM= RV & marine, W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| B |
Application- PR= pre-filter, T33=post filter |
| C |
Core filter type- UF=ultrafitration membrane, MB=melt blown, GAC=granular activated carbon, CB=carbon block |
| D |
Connection type- 1=quick connection or push-fit ¼”, 2=quick connection or push-fit ½”, 3= threaded NTP |
| E |
Additional information |
