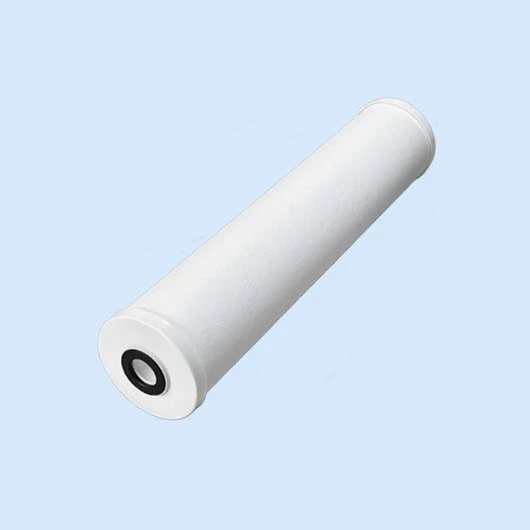

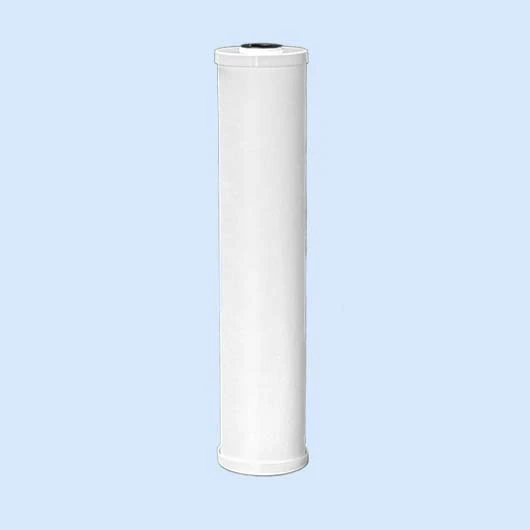

RFC series Radial Flow water filter cartridge

RFC series Radial Flow water filter cartridge

RFC series Radial Flow filter cartridge is made of melt blown inner & outer layer with adsorption media (usually GAC) in between, it removes sediments as well as organic pollution from water.
Inquire Now

Specification

RFC series Radial Flow filter cartridge is made of melt blown inner & outer layer with adsorption media (usually granular activated carbon) in between, it removes sediments as well as organic pollution from water. Compare to traditional UDF filter, RFC filter provides higher flow rate and better sediment reduction.

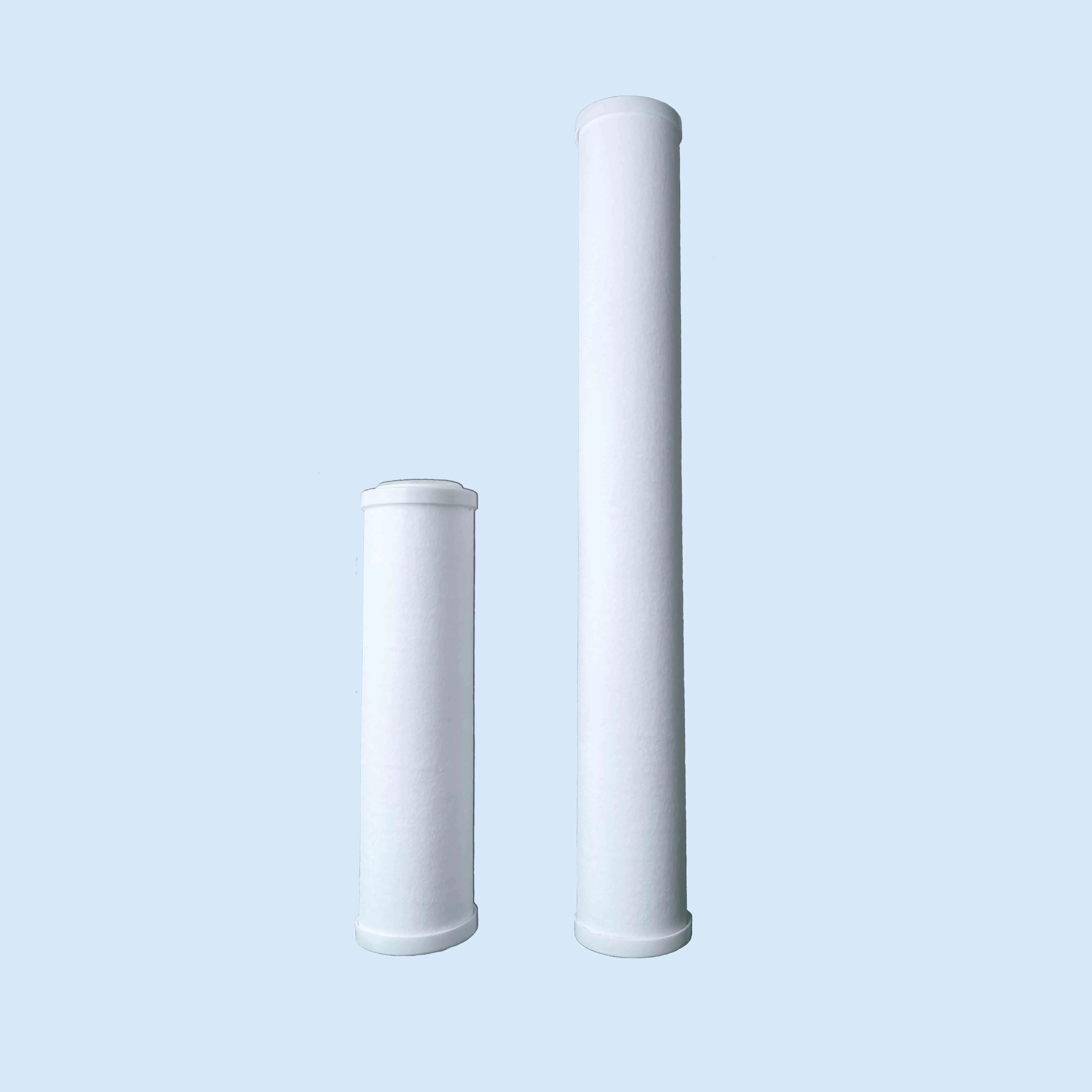

Available sizes: 2.5"x10", 2.5"x20", 4.5"x10" and 4.5"x20"
Micron rates: 1micron, 5microns and10microns

Features

• NSF Certified activated carbon
• High flow rate
• Low pressure drop
• Rapid dechlorination

Technical data

Maximum temperature: 140°F (60°C)
Maximum flow rate per 2.5"x10”: 2.12gpm (8L/min)
Size otpions: 2.5"x10", 2.5"x20", 4.5"x10", 4.5"x20"
Caution: Flush for 30 seconds before use. Do not exceed
the maximum flow rate to maintain sufficient contact time.

ORDERING INFORMATION

SF RFC 10 BB
        A    C    G
SF Brand name (optional)
A Filter type- W= string wound, PP= melt blown, RFC=radial flow filter cartridge, CTO= carbon block
B Cap type- B=PE cap + gasket, H=black rubber cap
C Length- 250= 250mm, 10=254mm, 20=508mm, 30=762mm
D Micron rates- blank= 5micron, 10=10micron
E Series- E=E series, NSF coal carbon, AK= AK series, NSF coconut carbon
F Efficiency- 8=80% and above, blank=90% and above.
G Additional information- CM= chloramine removal, BB=4.5"
