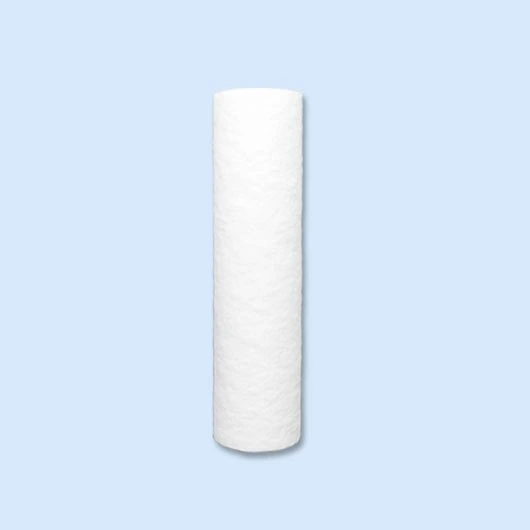

PP spun with furry surface or orange peel surface

PP melt blown filter with special surface treatments such as orange peel like surface and furry surface, to improve the flow rate or dirt holding of the filters, good for heavy duty sediment filtration.

Inquire Now

Specification

STRUCTURE

      PP Spun filter cartridge is a tube-shaped product, also names pp spun filters, which is made of polypropylene through melting, spraying, drawing, receiving and processes. Furry & Orange skin pp filters are in a weight range of 90-150g per 10" . And their micron range is 1 - 100micron. We have factory in China and accept OEM orders.
Available sizes: 2.5"x10", 2.5"x20", 2.5"x30", 2.5"x40", 2.5"x50"
Micron rates: 1micron, 5micron, 10micron, 20micron, 50micron, 100micron.

FEATURES

• Resonable price
• Stable performance
• Line covered surface

SPECIFICATION

• Length: 250㎜(10”)  500㎜(20”)  750㎜(30”)  1000㎜(40”)
• Diameter: Outer diameter: Ø 63±2㎜    Inner diameter: Ø30㎜  Ø28㎜
• Micron Rate: 1, 3, 5, 10, 20, 30, 50μm
• Operation pressure drop:  0.01 Mpa (1.45psi) Max pressure: 0.4 Mpa (58psi)
• Max     pressure    drop:  0.2Mpa(29psi) Max temperature: 60℃(140℉)

TYPICAL APPLICATIONS

• Sand, silt, dirt, rust particles removal
• Food & beverage
• Pre- RO
• Water treatment

TABLE 1

TECHNICAL INDEX ：

Item 型号	Normal precision 公称精度 μm	Initial precision 初始精度 μm	Max particles 最大颗粒 μm	Water flow 水流量L/min
PP-1	1	10-15	15	10
PP-3	3	15-25	25	14
PP-5	5	25-35	35	17
PP-10	10	30-40	40	20
PP-20	20	35-50	50	24
PP-30	30	40-60	60	28
PP-50	50	60-90	90	32
PP-75	75	90-110	110	34
PP-100	100	110-130	130	38

A: These flow values are for 10” filter cartridge under pressure difference of 0.015Mpa(2.17psi).
B: Filtering efficiency of the initial precision is 95%.
C: Filtering efficiency of the max particles is 99%.

TABLE 2

ORDERING INFORMATION

SF PP 20- 5 D 63 * 28 W 220 F
1 2 3 4 5 6 7 8 9 10

1.	Brand name （optional）
2.	Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
3.	Length- 10/20/30/40, inches. 250/500/750/1000, mm.
4.	Rating- 0.5/1/3/5/10/25/50/75/100/150/200/250/300 microns
5.	D= diameter, follow by diameters, outer diameter * inner diameter in mm
6.	Outer diameter: 60/63/110/152 mm
7.	Inner diameter: 28/30mm
8.	W= weight
9.	Weight- in grams
10.	Additional info- C= pp inner core, G= grooved/slotted, P= pressed/linded, BB= big blue F= furry, O= orange peel
