In-line water filter replacement

IL series In-line Water Filter cartridges

In-line water filter preplacement is usually used as post filters (T33) of household RO systems, the core of in-line filter can be made of sediment filter, granular activated carbon, carbon block or mineral balls. We use only NSF certified activated carbon.
Inquire Now

Specification

STRUCTURE

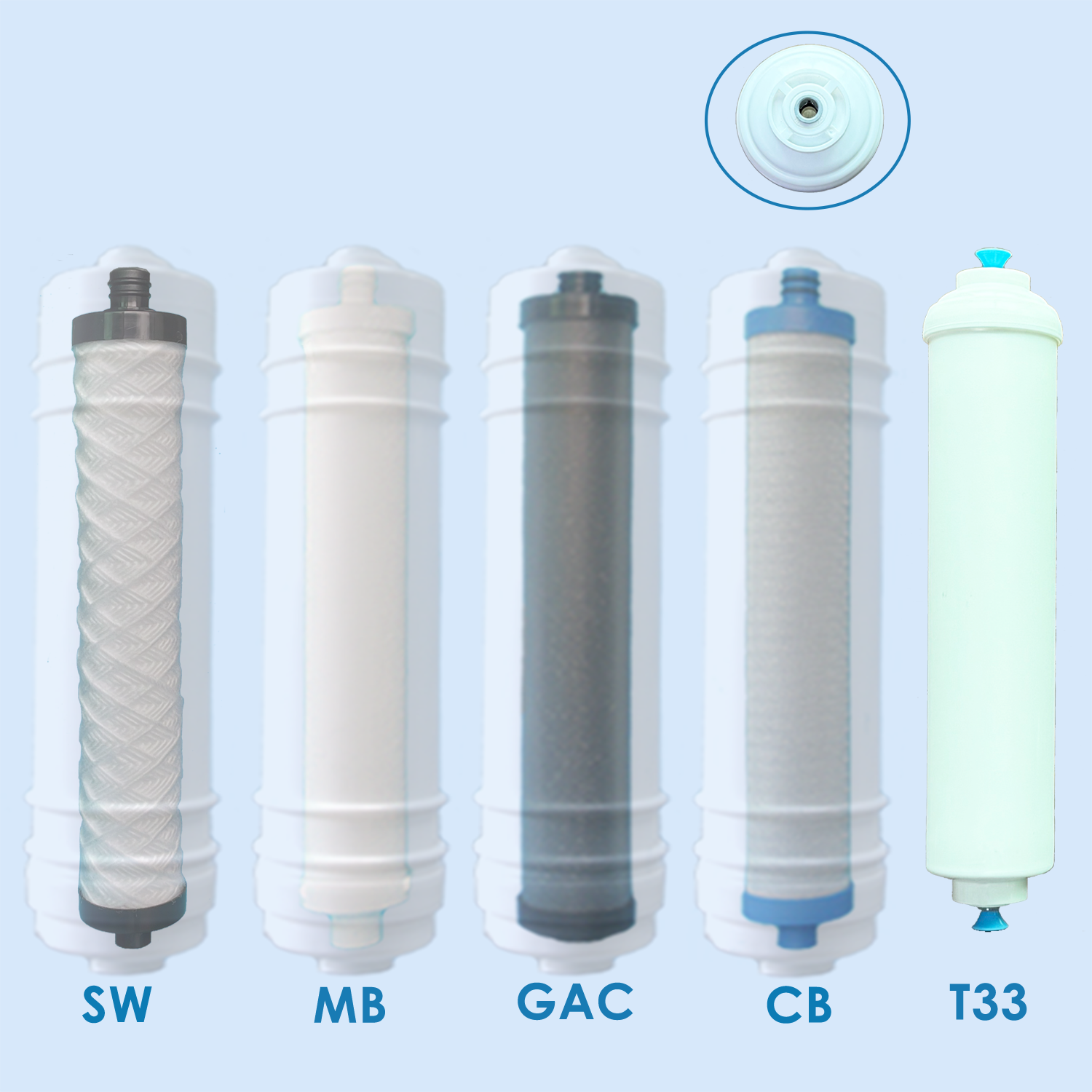

In-Line Filter Cartridge is suitable for RO systems as post water filter or T33 water filter, in some case also as pre-filter. It is made of PP shell with standard in-let and out-let options- quick-connect, push-fit and threaded NTP connection. The inner filter media can be carbon block, string wound, pp melt blown, granular activated carbon and mineral balls.

FEATURES

•  Quick connection
•  Easy replacement
•  High pressure resistance
•  Smaller size
•  Food grade

MAIN TECHICAL SPECIFICATION

•  Connection: 1/4" and 1/2" quick connection (push-to-fit), threaded NPT connection
•  Maximum operating Pressure: 0.5MPa (72.5psi)
•  Maximum temperature:  60℃(140℉)
•  Maximum flow rate:  2L/M (0.53G/M)
•  Bursting pressure: 2.0Mpa (290psi)
•  Maximum service life: 1000G or 6 months for pre-filter, 2000G or 12 months for post-filter T33
•  Measurements: 285x62mm for pre-filter, 265x50mm for post-filter T33

TYPICAL APPLICATIONS

•  Pre & post RO
•  Drinking water treatment
•  Refrigerator filter replacement
•  Household and commercial water purifier filter replacement
•  Odor, color, free chlorine, organic objects reduction and weak alkalinity

ORDERING INFORMATION


SF IL PR CB  1
      A B    C  D
SF Brand name (optional)
A Filter type- IL= inline, W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
B Application- PR= pre-filter, T33=post filter
C Core filter type- SW=string wound, MB=melt blown, GAC=granular activated carbon, CB=carbon block
D Connection type- 1=quick connection or push-fit  ¼”, 2=quick connection or push-fit ½”, 3= threaded NTP
E Additional information
