IL series In-line Water Filters

In-line filter cartridges with quick-connection, push-fit connection or threaded connection and the core can be string wound, melt blown, GAC, carbon block or mineral balls, usually use as pre and post filter for RO systems.

Inquire Now

Specification

STRUCTURE

In-Line Filter Cartridge is suitable for RO systems, work as pre-filter or post filter. It is made of PP shell with standard in-let and out-let optinos- quick-connect, push-fit and threaded NTP connection. The inner filter can be carbon block, string wound, pp melt blown, carbon granules and mineral balls.

FEATURES

•  Quick connection
•  Easy replacement
•  High pressure resistance
• Smaller size
•  Food grade

MAIN TECHICAL SPECIFICATION

•  Connection: 1/4" and 1/2" quick connection (push-to-fit), threaded NPT connection
• Maximum operating Pressure: 0.5MPa (72.5psi)
• Maximum temperature: 60℃(140℉)
• Maximum flow rate: 2L/M (0.53G/M)
•  Bursting pressure: 2.0Mpa (290psi)
• Maximum service life: 1000G or 6 months for pre-filter, 2000G or 12 months for post-filter T33
• Measurements: 285x62mm for pre-filter, 265x50mm for post-filter T33

TYPICAL APPLICATIONS

• Pre & post RO
• Drinking water treatment
• Refridgerator filter replacement
• Houshold and commercial water purifier filter replacement
• Odor, color, free chlorine, organic objects reduction and weak alkalinity

ORDERING INFORMATION

SF IL PR CB  1
A B C D

SF	Brand name (optional)
A	Filter type- IL= inline, W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
B	Application- PR= pre-filter, T33=post filter

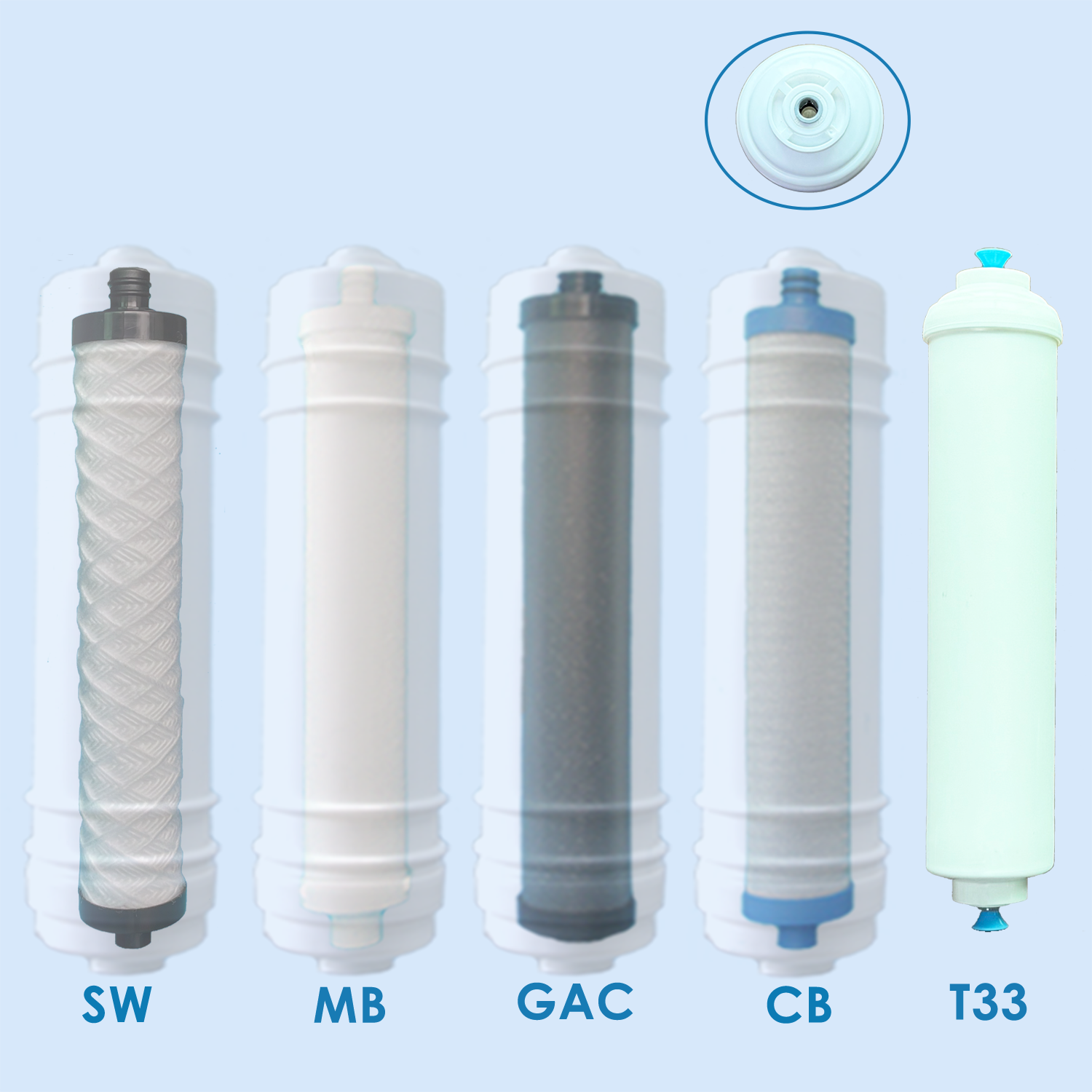

C	Core filter type- SW=string wound, MB=melt blown, GAC=granular activated carbon, CB=carbon block
D	Connection type- 1=quick connection or push-fit ¼”, 2=quick connection or push-fit ½”, 3= threaded NTP
E	Additional information
