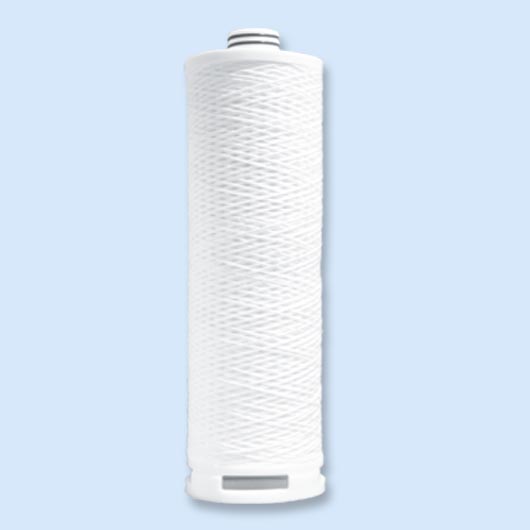

High flow string wound filter cartridge
High flow string wound filter cartridge is a patented filter the size of 6" diameter with 226 o-ring fittings, the length range is from 10" to 40", micron range from 1micron to 100micron, good for big volume sediment removal.
Inquire Now
Specification
STRUCTURE
High Flow string wound filter is patented in China by SF Filter. Using multi-holes to make the filter 9 times dirt holding capacity as ordinary string wound cartridges. With O-rings to avoid bypass. 3 grades are available. HFA, HFB and HFC can meet most pre-filtration requirements.
The end cap and dimensions can be customized to meet certain requirments
FEATURES
• High dirt holding capacity, long service life
• No bypass
• Easy replacement
• Through holes create real depth filtration
• High flow rate and low pressure loss
• Pure, clean and washed material which is same as NSF approved type (HFA).
• Pure material, suitable for strong corrosion liquids (HFB).
• Common material, allows lower price (HFC).
MAIN TECHICAL SPECIFICATION
• Dimension: Outer diameter Ø158±1mm(6.22") Inner diameter Ø 70mm(2.48")
• Maximum operating Pressure: 0.5MPa （72.5psi）
• Maximum operating Pressure Drop: 0.2MPa （29psi）
• Maximum operating Temperature: 60℃（140℉）
TYPICAL APPLICATIONS
• Food & Beverage (HFA)
• Pharmacy & Hospital (HFA)
• Pre - RO (HF A & HFB)
• Industrial liquid filtration
• Other applications
TABLE 1
DIRT HOLDING CAPACITY COMPARISON GRAPH
TABLE 2
ORDERING INFORMATION
SF W 40- 5 HF A
A B
| SF | Brand name |
| W | Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| A | Length- 20/30/40/60, inches. . |
| B | Rating- 1/5/10/20/50/100 microns |
| HF | Series code- JP= JP series, HF= Hi Flow series |
| A | Additional info- A= food grade, pure wahsed PP yarn + 226 silicon O-rings , B= industrial grade, pure PP yarn + 226 Viton O-rings, C= economic grade, common yarn + 226 EPDM O-rings |
