High Flow pleated filter cartridges

High flow pleated filter cartridges

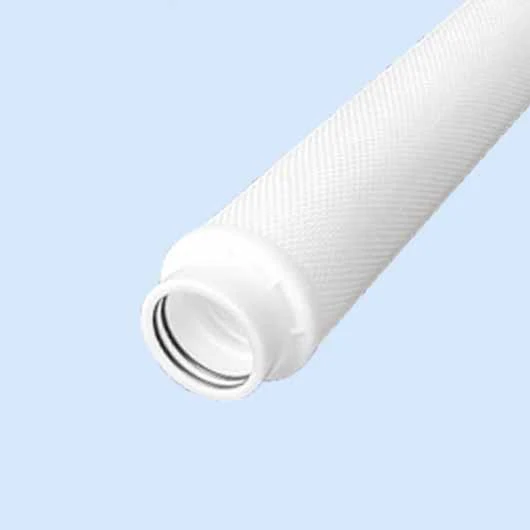

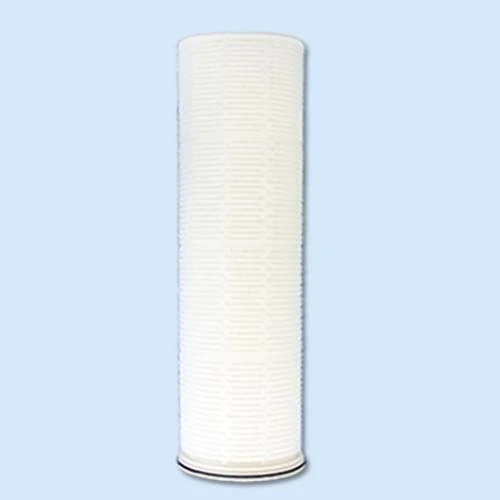

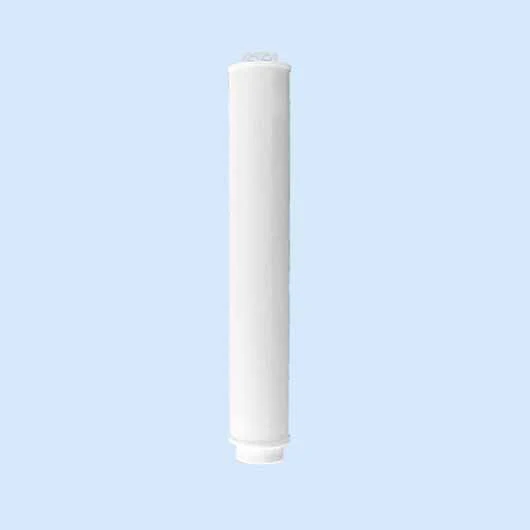

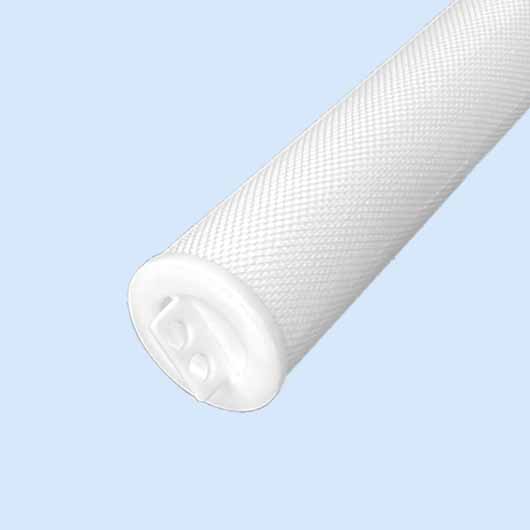

High Flow pleated filter cartridge with 6" diameter and different end caps, usual lengths are 40" and 60", absolute rated 0.5micron, 1micron, 5micron, 10micron, 20micron, 50micron and 100micron, it's used as high capacity sediment filter for desalination and industrial applications.
Inquire Now

Specification

MAIN TECHNICAL SPECIFICATION


Maximum operation temperature:

Glass fiber: 121°C

PP: 82°C

Maximum pressure drop:

Glass fiber: 3.4bar at 121°C

PP: 3.4bar at 82°C

Recommended replacing pressure drop:

2.4Bar at 20°C

Suggested maximum flow of water:

20 inch: 660LMP

40 inch: 1300LMP

60 inch: 1900LMP

 TYPICAL APPLICATION

Pre-filtration of RO, Pretreatment of sea water desalination

Condensate water filtration, hot water recovery in power generation

API, solvents and water filtration in Bio-Pharm market

The filtration of bottled water, high fructose food oil, soft drinks and milk

Paints and coatings, petrochemical, refineries

Microelectronics, film, fiber and resin
