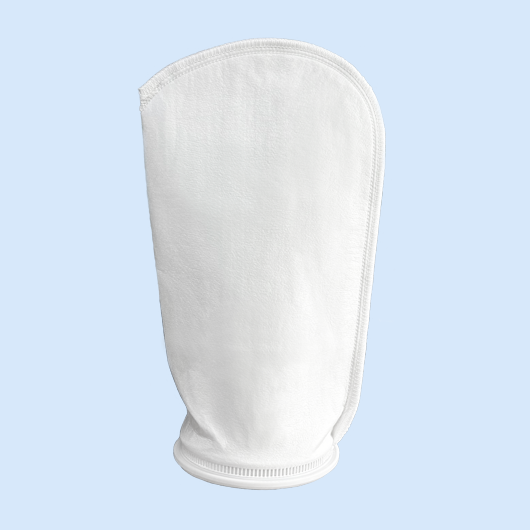

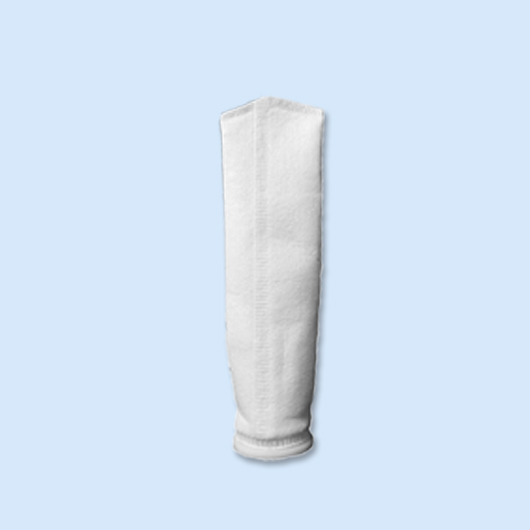

PE/PP filter bag

Filter bags made of PP or PE, 0.5-100 microns, size P1S, P2S, P3S, P4S and customized sizes with plastic or metal ring, processed by sewing, ultrasonic or hot wind welding.

Inquire Now

Specification

Technique parameter:

Polypropylene liquid filter bag
Item	1# filter bag	2# filter bag	3# filter bag	4# filter bag
Size(mm)	180*450	180*810	105*230	105*380
Size(inch)	7"*17"	7"*32"	4"*9"	4"*15"
Tolerance	≤0.3-0.8(mm)
Bag Area(m2)	0.25	0.5	0.056	0.115
Filtration rate	1micron,5micron,10micron,25micron,50micron,75micron,100micron,200micron
Material	100%PP filter media/100% Polyester filter media
Neck material	The bag neck ring will be stainless steel or plastic
Filtration pressure:1.03-1.72(kg/cm2)
Micron Polypropylene filter bag can work below 90℃,and Polyester filter bag can work below 130℃.

Manufactured in China.
