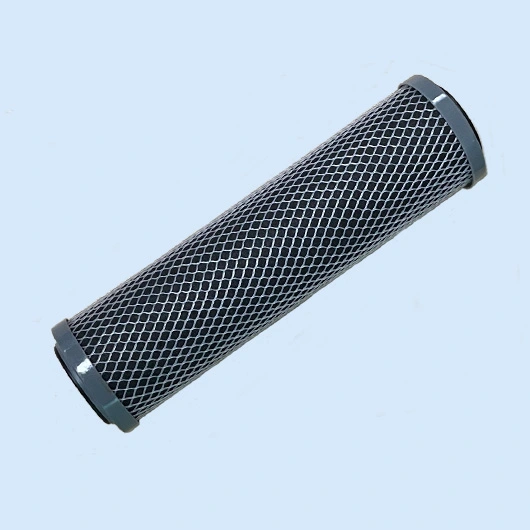

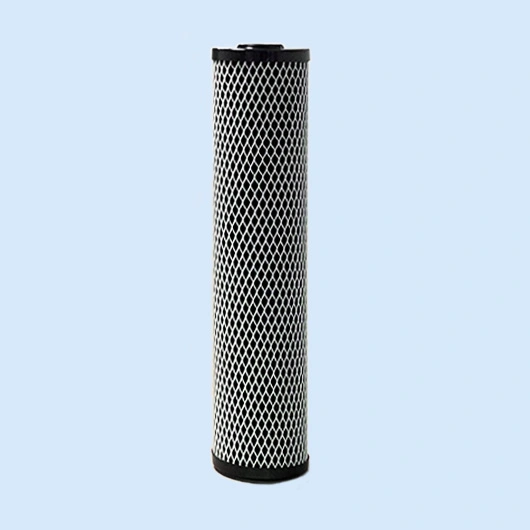

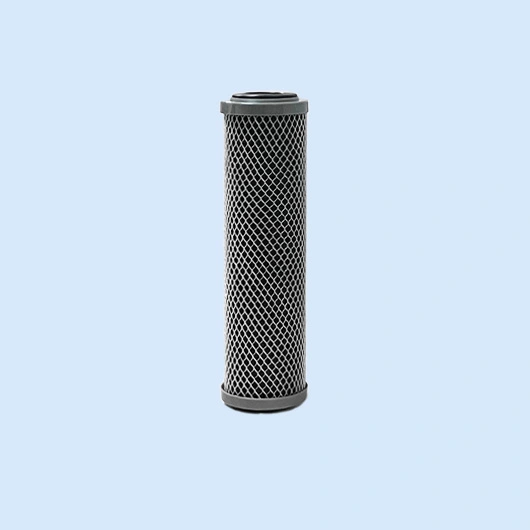

CFR series activated carbon paper wound filter cartridge

CFR series filter cartridge is made of activated carbon paper, also known as activated carbon fiber wound filter cartridge, the media is actually made from PAC (powdered activated carbon) and wood pulp cellulose, with ultra-high capacity and super long service life.  CFR series filters can be used for industrial water and industrial liquids purification (such as electro-plating solution), drinking and commercial water treatment, with standard sizes of 2.5"x10", 2.5"x20", 2.5"x30”, 2.5"x40", 4.5"x10" and 4.5"x20".


FEATURES

• Papermaking process impregnated with PAC
• Ultra high adsorbtion efficiency
• Long service life
• Low pressure drop


TECHNICAL DATA

Maximum temperature: 39.2-176°F (4-80°C)
Recommend flow rate per 10”: 1.06gpm (4L/min)
Maximum replacement Δp: 14.5psi (1.0bar)
Service life per 10": >1000G@1GPM (≥80%)
Pressure drop: <2psi@1GPM
Norminal rating: 20micron
OD: 2.5"(67mm)
ID: 1.1"(28mm)

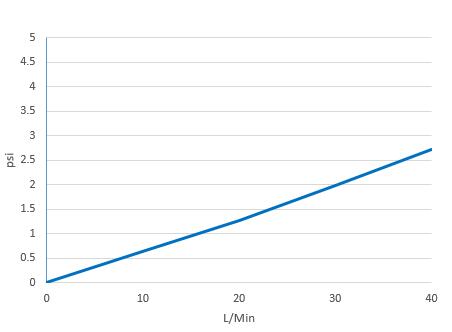

PRESSURE DROP VS. FLOW RATE GRAPH

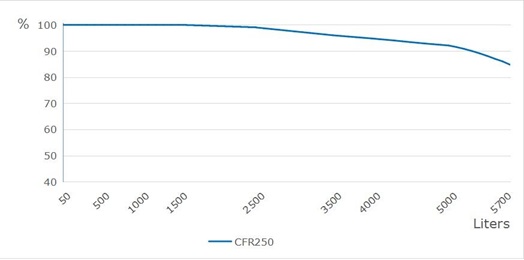

FREE CHLORINE REDUCTION GRAPH



ORDERING INFORMATION

SF CFR 250 BB
        A    B       C

SF	Brand name (optional)
A	Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CFR= activated carbon paper wound filter
B	Length- 250= 250mm, 10=254mm, 20=508mm, 30=762mm, 40"=1016mm
C	Additional information: BB= big blue/4.5" diameter, blank=drinking water applications, M=industrial liquid applictions
