STRUCTURE

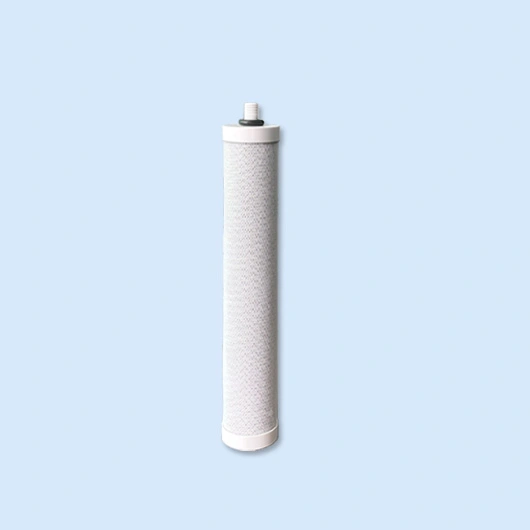

Water filter replacement activated carbon filter cartridge is the second filter cartridge of 3-stage drinking water filter replacements, it is a type of slim carbon block filter with threaded or double O-ring end caps. The usual OD is 48mm and length 263mm or 295mm, also can be assembled as core of in-line filters, other customized sizes and end cap options available.
FEATURES
• Smaller size
• Compatible with Doulton sized filters
• High CTO reduction
• Food grade material
MAIN TECHICAL SPECIFICATION
• Connection: threaded or double O-ring nipple
• Maximum operating Pressure: 0.5MPa (72.5psi)
• Maximum temperature: 60℃(140℉)
• Maximum flow rate: 2L/M (0.53G/M)
• Measurements: 48X263mm, 48X295mm
TYPICAL APPLICATIONS
• CB Pre-filter replacement cartridge
• Second stage of 3-stage water filter replacement
• Color, taste, odor reduction
• Chlorine reduction
ORDERING INFORMATION
CTOB 295/ 48 E8
A B C D
| SF |
Brand name (optional) |
| A |
Filter type- SFW= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block |
| B |
Filter length- 295=295mm |
| C |
Filter OD- 45mm, 48mm, 50mm, |
| D |
Additional information- E8=E series |
