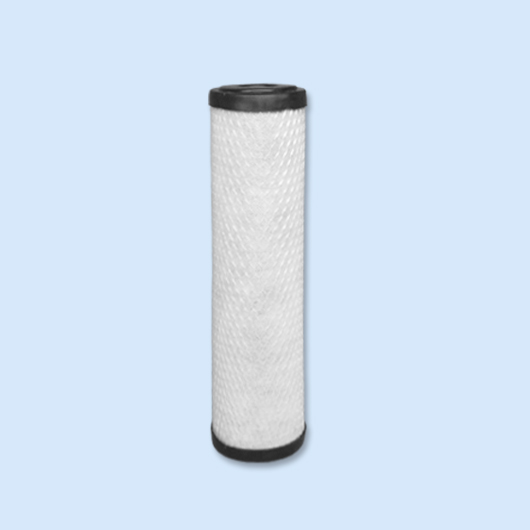

H series rubber cap carbon filter cartridges

H series carbon block filter cartridges with black single molded caps, widely used in plating industry, the length can be 10", 20", 30" and 40", the carbons were chosen to remove certain contaminates from industrial processing liquids.

Inquire Now

Specification

STRUCTURE

H series carbon block filter cartridges with black single molded caps, widely used in plating industry, the length can be 10", 20", 30" and 40", the carbons were chosen to remove certain contaminates from industrial processing liquids. Coal carbon or coconut carbon make resonable price. All finishing materials are acid and alkali resistance. EPDM cap. It is widely used in electro-plating industry in China.

FEATURES

• Resonalb prices
• High flow rate
• Matrue process technology

MAIN TECHICAL SPECIFICATION

• Dimension: Outer diameter Ø67±1mm Inner diameter Ø 28mm or Ø 30mm
• Maximum operating Pressure: 0.5MPa （72.5psi）
• Temperature: 60℃（140℉）
• Maximum flow rate per 10": 8L/M (2.11G/M)
• Chlorine removal 80% for coal carbon and 99% for coconut carbon

TYPICAL APPLICATIONS

• PCB & metal finishing
• Industrial liquid treatment
• Waste water treatment
• Odor, color, free chlorine, organic objects reduction

ORDERING INFORMATION

SF CTO H 500 AK
1 2 3 4 5

1.	Brand name
2.	Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
3.	Cap type - B= PP cap + EPDM gesket, H= EPDM cap
4.	Length- 250/500/750/1000mm, 10/20/30/40 inches
5.	Additional info - AK= coconut carbon, K= Coconut shell carbon fine
