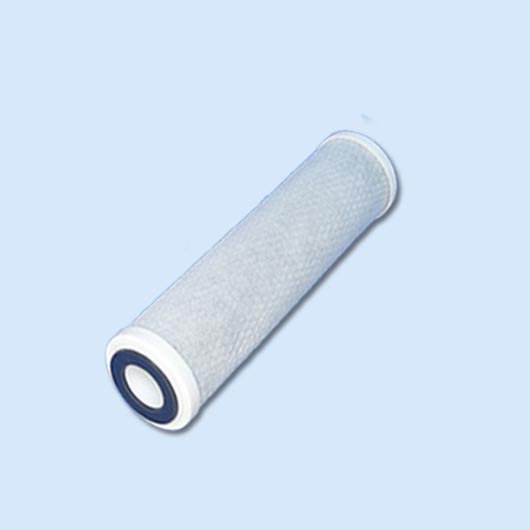

B series carbon block filter cartridges (the cheapest CTO carbon filter)

B series pp cap carbon block filter cartridge

B series carbon block filter cartridges is ordinary carbon block filter cartridges with white plastic caps and black gaskets, usual sizes are 2.5"x10" and 2.5"x20", suitable for water treatment and industrial use, it's the budget series of carbon filter from SF's factory in China.
Inquire Now

Specification

STRUCTURE

B series carbon block filter is the low cost version of CTO carbon filter cartridge, with block type main filter and plastic end caps. Coal carbon or coconut carbon make resonable price. All finishing materials are acid and alkali resistance. EPDM seal washers. It is a low cost of carbon filter made by SF's factory in China.

Sizes: 2.5"x10", 2.5"x20", 4.5"x10", 4.5"x20"
Micron rates: 5micron, 10micron.

•  Resonalb prices
•  High flow rate
•  Matrue process technology

MAIN TECHICAL SPECIFICATION

•  Dimension: Outer diameter Ø65±1mm Inner diameter Ø 28mm or Ø 30mm
•  Maximum operating Pressure: 0.5MPa (72.5psi)
•  Temperature:  60℃(140℉)
•  Maximum flow rate per 10":  8L/M (2.11G/M)
•  Chlorine removal 80% for coal carbon and 99% for coconut carbon


TYPICAL APPLICATIONS

•  Pre - RO
•  Water treatment
•  Waste water treatment
•  Odor, color, free chlorine, organic objects reduction

ORDERING INFORMATION

SF CTO B 500 AK
1     2     3    4    5


1. Brand name
2. Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block
3. Cap type - B= PP cap + EPDM gesket, H= EPDM cap
4. Length- 250/500/750/1000mm, 10/20/30/40 inches
5. Additional info - AK= coconut carbon, K= Fine coconut shell carbon
