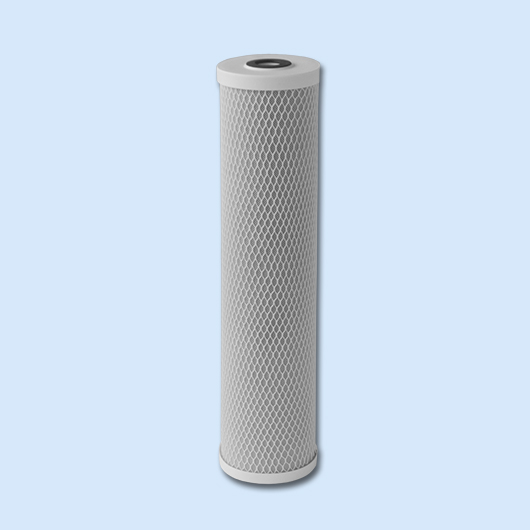

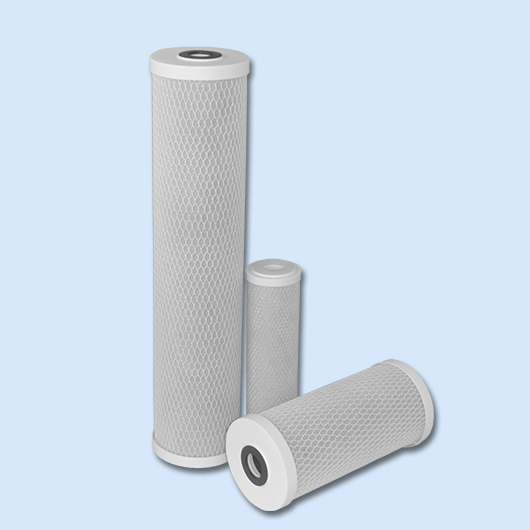

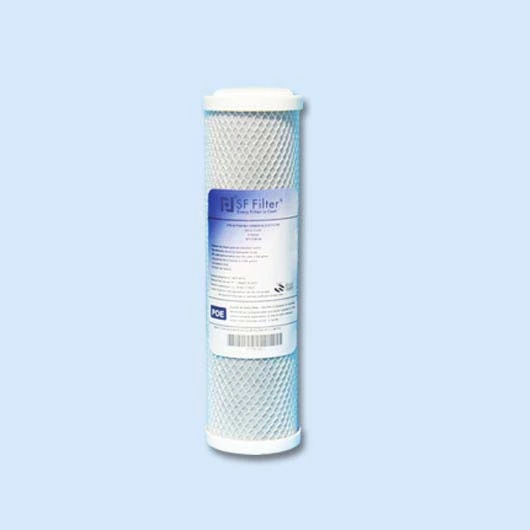

E series carbon block filter cartridge
E series carbon block filter cartridge is made of NSF certified coal based carbon, the finest coal carbon from China, we can offer all the standard filter cartridge sizes 2.5”x10", 2.5"x20", 4.5"x10", 4.5"x20" and accept customized sizes, designed for drinking water filter systems.
This series of filters are designed for municipal, residential and industrial water and liquids, typically for Foodrelated-industrial applications, to treat all water entering a single home, business, school, or facility. We have standard 2.5"x10", 2.5"x20", 4.5"x10", 4.5"x20", micron rates of 1 micron, 5 microns and 10microns. As a manufacturer, OEM customized sizes are available.
• NSF Certified coal based granular activated carbon
• High efficiently bound by food grade binder
• 90% initial dechlorination
• Long service life
• Low pressure drop
• All virgin raw material
Maximum temperature: 140°F (60°C)
Maximum flow rate per 10”: 1.06gpm (4L/min)
Maximum replacement Δp: 14.5psi (1.0bar)
Service life: ≥5,000L, or 3 months.
Caution: Flush for 30 seconds before use. Do not exceed
the maximum flow rate to maintain sufficient contact time.
SF CTO B 250-10 E 8 BB
A B C D F
|SF||Brand name (optional)|
|A||Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CTO= carbon block|
|B||Cap type- B=PE cap + gasket, H=black rubber cap|
|C||Length- 250= 250mm, 10=254mm, 20=508mm, 30=762mm|
|D||Micron rates- blank= 5micron, 10=10micron|
|E||Series- E=E series, NSF coal carbon, AK= AK series, NSF coconut carbon|
|F||Efficiency- 8=80% and above, blank=90% and above.|
|BB||OD- BB=113.5mm/4.5“, blank=68mm/2.5”|
