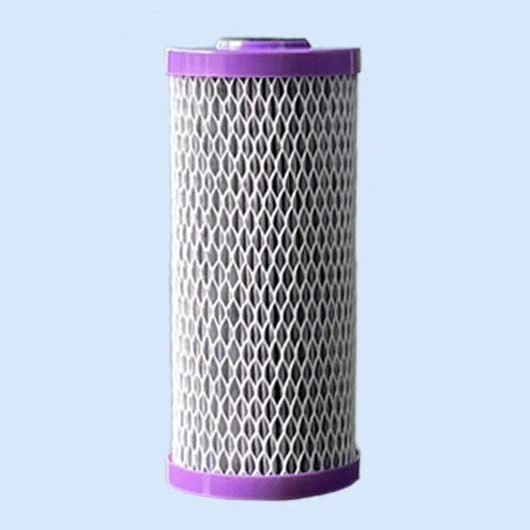

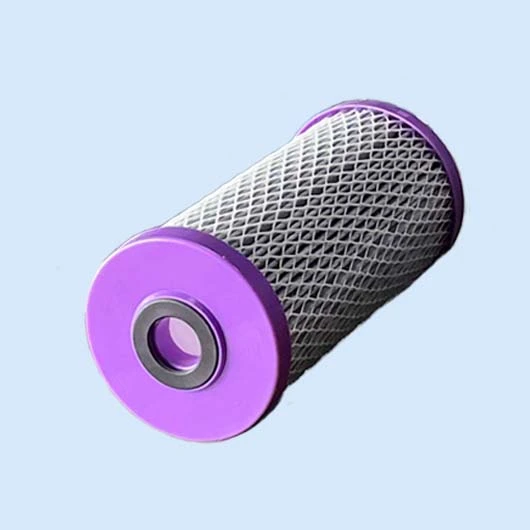

CFP series Activated carbon fiber pleated filter cartridge

CFP series filter cartridge uses high efficient ACF(activated carbon fiber) pleated media as outer layer and melt blown filter as inner layer, it removes both organic pollutants and sediments with very low pressure drop. CFP series filters can be used for drinking, commercial, and industrial water and industrial liquids purification. Color of the end caps and net are customizable.

FEATURES

• Newly developed ACF media reduces free chlorine
• High adsorbtion efficiency
• Melt blown inner core removes sediments
• Low pressure drop


TECHNICAL DATA

Maximum temperature: 39.2-125.6°F (4-52°C)
Recommend flow rate per 10”: 1.0gpm (3.8L/min)
Maximum replacement Δp: 14.5psi (1.0bar)
Service life per 10": >225G@1GPM
Pressure drop: <2psi@3GPM
Norminal rating: 10micron
OD: 2.5"(67mm)
ID: 1.1"(28mm)

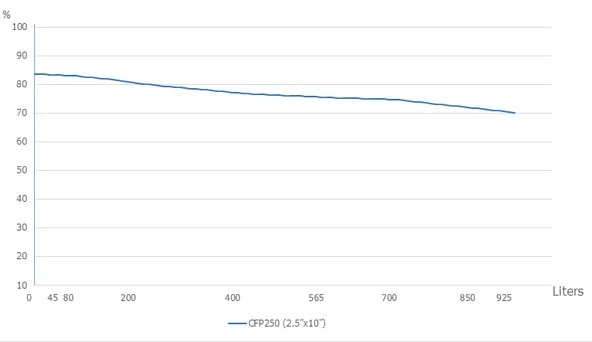

FREE CHLORINE REDUCTION GRAPH - 2.5"x10"


* Above test is on 2.5"x10" CFP cartridge, using 2ppm free chlorine feed water at 1gpm.

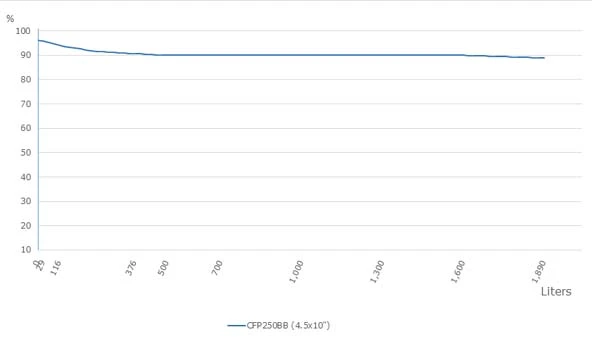

FREE CHLORINE REDUCTION GRAPH - 4.5"x10"



* Above test is on 4.5"x10" CFP cartridge, using 2ppm free chlorine feed water at 2gpm.


ORDERING INFORMATION

SF CFP 250 BB
        A    B       C

SF	Brand name (optional)
A	Filter type- W= string wound, PP= melt blown, PPL= PP pleated, CFP=activated carbon fiber pleated filter cartridge
B	Length- 250= 250mm, 10=254mm, 20=508mm, 30=762mm, 40"=1016mm
C	Additional information: BB= big blue/4.5" diameter, blank=drinking water applications, M=industrial liquid applictions
